| PartNumber | COM104T9M15ERS |
| Brand | Ortustech |
| Size | 10.4 |
| Application | Industrial |
| Resolution | 800(RGB)×600, SVGA, 96PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 560 cd/m² (Min.) |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | |
| Panel Brand | Ortustech |
| Panel Size | 10.4" |

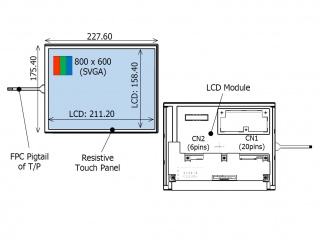

| Display Area | 211.2(W)×158.4(H) mm |
| Outline Size | 227.6(W)×175.4(H) mm |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K/16.7M 50% NTSC |
| Frequency | 60Hz |
| Weight | - |
| Panel Model | COM104T9M15ERS |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | FFS, Normally Black, Transmissive |
| Response Time | 40 (Max.)(Tr+Td) |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Touch Screen | 4-wire Resistive Touch |
