| PartNumber | COM121T9M14CSS |
| Brand | Ortustech |
| Size | 12.1 |
| Application | Industrial |
| Resolution | 800×600 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | COM121T9M14CSS |
| Diagonal Size | 12.1 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×600 [SVGA] 82PPI |
| Configuration | RGB Vertical Stripe |

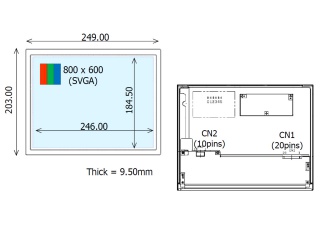

| Active Area | 246(H)×184.5(V) mm |
| Outline Dim. | 260.5(H)×203(V) ×10(D) mm |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 40 (Max.)(Tr+Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 262K/16.7M 48% NTSC |
| Light Source | WLED , 70K hours , With LED Driver |
| Weight | 500g (Typ.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
