| PartNumber | COM35H3P58ULC |
| Brand | Ortustech |
| Size | 3.5 |
| Application | Handheld & PDA |
| Resolution | 320×240 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 700:12:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | Parallel |
| Model | COM35H3P58ULC |
| Diagonal Size | 3.5 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 320(RGB)×240 [QVGA] 115PPI |
| Configuration | RGB Vertical Stripe |

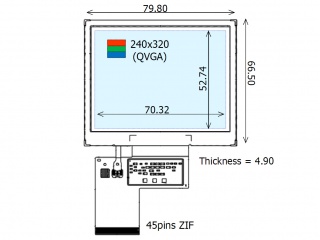

| Active Area | 70.32(H)×52.74(V) mm |
| Outline Dim. | 79.8(H)×66.5(V) ×5.1(D) mm |
| Bezel Area | - |
| Treatment | Hard coating (2H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| View Direction | Symmetry |
| Response Time | 60/40 (Max.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Operating Mode | VA, Normally Black, Transflective |
| Support Color | 16.7M 50% NTSC |
| Light Source | WLED [3S2P] , 50K hours , W/O Driver |
| Weight | TBD |
| Designed For | Handheld & PDA |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
