| PartNumber | COM48H4N77ULC |
| Brand | Ortustech |
| Size | 4.8 |
| Application | Handheld & PDA |
| Resolution | 720×1280 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 700:13:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Diagonal Size | 4.8 inch |
| Pixel Format | 720(RGB)×1280 [WXGA] 309PPI |
| Active Area | 59.184(H)×105.216(V) mm |
| Bezel Area | - |
| Luminance | 300 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Support Color | 16.7M 50% NTSC |
| Weight | 25.2g (Typ.) |
| Frame Rate | - |
| Interface Type | MIPI (4 data lanes) , 26 pins Connector |
| Power Supply | 1.9/2.9V (Typ.)(IOVCC/VCC) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| Model | COM48H4N77ULC |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |

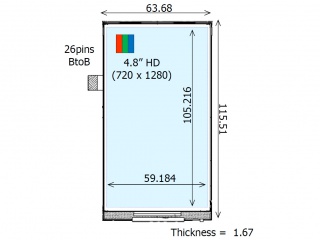

| Outline Dim. | 63.68(H)×115.51(V) ×1.87(D) mm |
| Treatment | Hard coating (2H) |
| Contrast Ratio | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| Response Time | 40/60 (Max.)(Tr/Td) |
| Operating Mode | VA, Normally Black, Transflective |
| Light Source | WLED [9S1P] , 20K hours , W/O Driver |
| Designed For | Handheld & PDA |
| Touch Panel | Without |
