| PartNumber | COM50H5N03ULC |
| Brand | Ortustech |
| Size | 5.0 |
| Application | Handheld & PDA |
| Resolution | 720×1280 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 800:13:1 |
| Colors | 16.7M |
| Backlight | 8S1P WLED , 50K hours , No Driver |
| Interface | MIPI |
| Manufacturer | Ortustech |
| Model Name | COM50H5N03ULC 1 Compatible |
| Screen Size | 5.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 720(RGB)×1280 (WXGA) 296PPI |
| Arrangement | RGB Vertical Stripe |

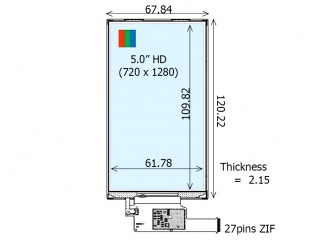

| Active Area(mm) | 61.776 × 109.824 (H×V) |
| Outline(mm) | 67.84 × 120.22 × 2.4 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Hard coating (2H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | TBD ms |
| Good View at | Symmetry |
| Work Mode | VA, Normally Black, Transflective |
| Color Depth | 16.7M 50% NTSC |
| Mass | 34.0g (Typ.) |
| Used for | Handheld & PDA |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes) , 27 pins FPC |
| Voltage Supply | 1.9/2.9V (Typ.)(VCCIO/VDD) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
