| PartNumber | COM57T5N07RSS |
| Brand | Ortustech |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 640×480 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | Parallel |
| Diagonal Size | 5.7 inch |
| Pixel Format | 640(RGB)×480 [VGA] 141PPI |
| Active Area | 115.2(H)×86.4(V) mm |
| Bezel Area | - |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Support Color | 262K 50% NTSC |
| Weight | - |
| Frame Rate | 60Hz |
| Interface Type | Parallel RGB (1 ch, 6-bit) Connector |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Model | COM57T5N07RSS |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |

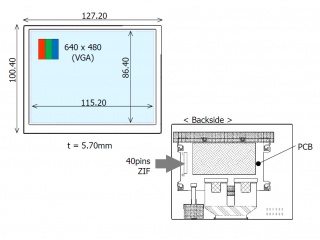

| Outline Dim. | 127.2(H)×100.4(V) mm |
| Treatment | Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | - |
| Operating Mode | IPS, Normally Black, Transmissive |
| Light Source | WLED [5S3P] , 50K hours , With LED Driver |
| Designed For | Industrial |
| Touch Panel | Without |
