| PartNumber | COM70H7M44UTC |
| Brand | Ortustech |
| Size | 7.0 |
| Application | Industrial Outdoor H |
| Resolution | 800×480 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 900:1 |
| Colors | 262K/16.7M |
| Backlight | 7S2P WLED , 50K hours , No Driver |
| Interface | LVDS |
| Manufacturer | Ortustech |
| Model Name | COM70H7M44UTC |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |

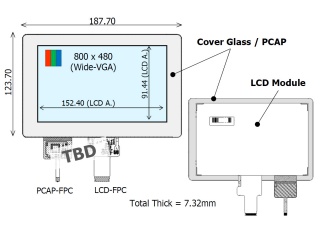

| Active Area(mm) | 152.4 × 91.44 (H×V) |
| Outline(mm) | 187.7 × 123.7 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Hard coating (3H) |
| Luminance | 900 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | 50 (Typ.)(Tr+Tf) ms |
| Good View at | Symmetry |
| Work Mode | VA, Normally Black, Transflective |
| Color Depth | 262K/16.7M 50% NTSC |
| Mass | TBD |
| Used for | Industrial Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP |
| Signal Type | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
