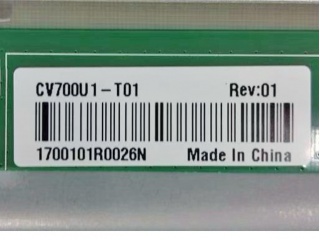

| PartNumber | CV700U1-T01 |
| Brand | CHOT |
| Size | 70 |
| Application | TV Sets |
| Resolution | 3840×2160 |
| Composition | CELL , a-Si TFT-LC |
| Brightness | |
| CR | 5000:1 |
| Colors | 1.07B |
| Backlight | No B/L |
| Interface | V-by-One |
| Manufacturer | CHOT |
| Screen Size | 70 inch |
| Pixel Number | 3840(RGB)×2160 (UHD) 63PPI |
| Active Area(mm) | 1549.44 × 846.72 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.50+0.50 mm |
| Color Depth | 1.07B 70% NTSC |
| Mass | 3.87Kgs (Typ.) |
| Refresh Rate | 60Hz |
| Driver IC list | Built-in COF 12 source + 8 gate chips |
| Signal Type | V-by-One 8 lane , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | CV700U1-T01 |
| Screen Type | CELL , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 1561.44 × 859.22 × 1.37 (H×V×D) |
| Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Contrast Ratio | 5000 : 1 (Typ.) (TM) |
| Response | 8.5 (Typ.)(G to G) ms |
| Work Mode | Transmissive |
| Transmissivity | 4.9% (Typ.)(with Polarizer) |
| Used for | TV Sets |
| Touchscreen | Without |
