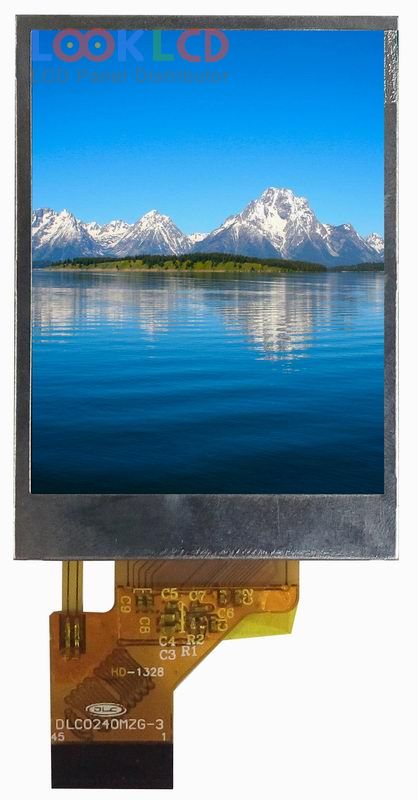

| PartNumber | DLC0240LZG-4 |
| Brand | Other |
| Size | 2.4 |
| Application | MPH |
| Resolution | 240(RGB)×320 , QVGA |
| Composition | LCM |
| Brightness | 1000 cd/m² (Typ.) |
| CR | 350:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | CPU |
| Panel Brand | DLC |
| Panel Model | DLC0240LZG-4 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 2.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 36.72×48.96 mm |
| Outline | 42.72×60.35 mm |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 350:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/50/30 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 6S1PWLEDWithout Driver |
| Signal Interface | CPU, 45 pins |
| Input Voltage | 2.8/3.3V (Typ./Max.) |
