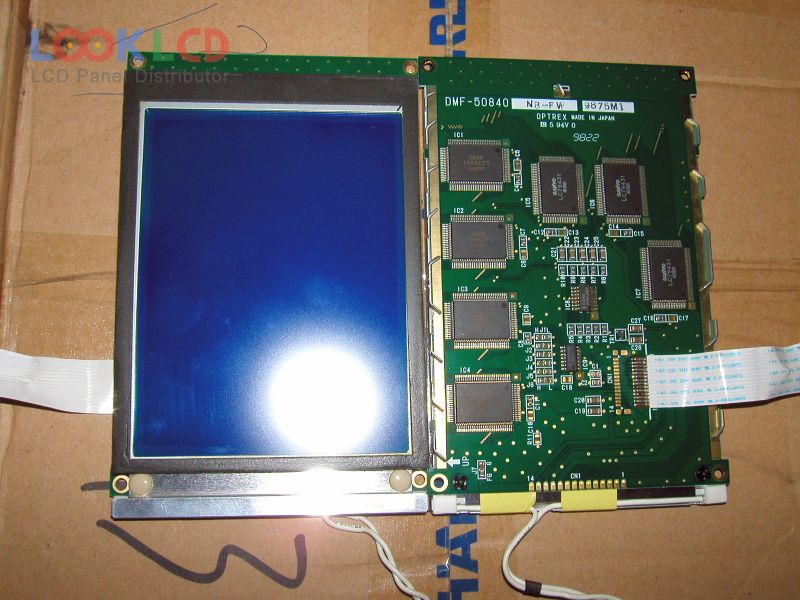

| PartNumber | DMF-50840NB-FW |
| Brand | Kyocera |
| Size | 5.7 |
| Application | IA |
| Resolution | 320×240 , QVGA |
| Composition | LCM |
| Brightness | 60 cd/m² (Typ.) |
| CR | 5:1 |
| Colors | Monochrome |
| Backlight | CCFL |
| Interface | Parallel Data |
| Panel Brand | OPTREX |
| Panel Model | DMF-50840NB-FW |
| Panel Type | STN-LCD , LCM |
| Panel Size | 5.7 inch |
| Display Mode | STN, Blue mode (Negative), Transmissive |
| Active Area | 115.2×86.4 mm |
| Outline | 167.1×109 mm |
| Surface | |
| Contrast Ratio | 5:1 (Typ.) |
| Display Colors | Monochrome |
| Response Time | 270/400 (Typ.)(Tr/Td) |
| Viewing Angle | |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel Data (4-bit), 14 pins |
| DLC0570BDG-3 | Other | 5.7 | 640×480 |
| DMF-50840NB-FW | Kyocera | 5.7 | 320×240 |
| ER0570A2NC6 | EDT | 5.7 | 320×240 |
| ET0570B0DHU | EDT | 5.7 | 640×480 |
| KCG057QV1DB-G760 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G77 | Kyocera | 5.7 | 320×240 |
| LQ057AC111 | Other | 5.7 | 320×240 |
| TCG057QVLAC-G00 | Kyocera | 5.7 | 320×240 |
| TM057KDH01 | Tianma | 5.7 | 320×240 |
| TX14D22VM1BAA | KOE | 5.7 | 320×240 |
| AA121SU01 | Mitsubishi | 12.1 | 800×600 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| FX050700DSCWDG12 | Data Image | 5.7 | |
| LB150X02-TL01 | LG Display | 15.0 | 1024×768 |
| LQ150X1LG55 | SHARP | 15.0 | 1024×768 |
| LQ150X1LW12 | SHARP | 15.0 | 1024×768 |
| NL10276BC30-34D | NLT | 15.0 | 1024×768 |
| SP14Q002-C1 | KOE | 5.7 | 320×240 |
| TX23D86VM0BAA | KOE | 9.0 | 1280×768 |
| UG-5664ALBDF01 | WiseChip | 2.8 | 256×64 |
