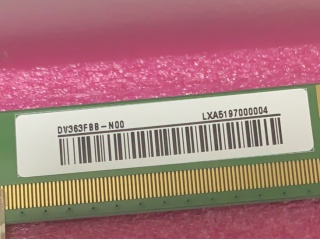

| PartNumber | DV363FBB-N00 |
| Brand | BOE |
| Size | 36.3 |
| Application | Digital Signage |
| Resolution | 1216(RGB)×2160, 68PPI |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | 0 cd/m² |
| CR | 1200:1 |
| Colors | 16.7M |
| Backlight | No |
| Interface | LVDS |
| Panel Brand | BOE |
| Panel Model | DV363FBB-N00 |
| Panel Size | 36.3" |
| Panel Type | a-Si TFT-LCD, CELL |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 452.352(W)×803.52(H) mm |
| Bezel Opening | - |
| Outline Size | 464.352(W)×809.62(H) mm |
| Surface | Antiglare (Haze 1%) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.1% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COGBuilt-in 4 source chips |
| Panel Weight | 1.20Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
