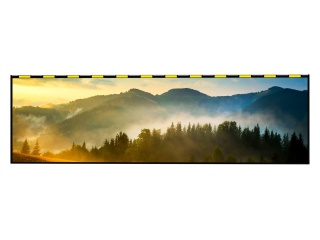

| PartNumber | DV438FBD-N50 |
| Brand | BOE |
| Size | 43.8 |
| Application | Digital Signage Stretched Bar LCD |
| Resolution | 3840(RGB)×1080, 91PPI |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | 0 cd/m² |
| CR | 1000:1 |
| Colors | 1.07B |
| Backlight | No |
| Interface | V-by-One |
| Panel Brand | BOE |
| Panel Model | DV438FBD-N50 |
| Panel Size | 43.8" (Native bar) |
| Panel Type | a-Si TFT-LCD, CELL |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 1071.36(W)×301.32(H) mm |
| Bezel Opening | - |
| Outline Size | 1084(W)×314.88(H) ×1.35(D) mm |
| Surface | Antiglare (Haze 25%) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.2% (Typ.)(with Polarizer) |
| Display Colors | 1.07B |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COF Built-in 12 source chips |
| Panel Weight | 900g (Typ.) |
| Signal Interface | V-by-One 8 lane , 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
