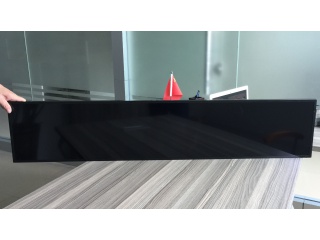

| PartNumber | DV490FBM-N00 |
| Brand | BOE |
| Size | 48 |
| Application | Digital Signage Outdoor High Brightness Stretched Bar LCD |
| Resolution | 3840(RGB)×720, 81PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 1000 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 1.07B |
| Backlight | WLED |
| Interface | |
| Panel Brand | BOE |
| Panel Size | 48" (Native bar) |
| Display Area | 1194.05(W)×223.884(H) mm |
| Outline Size | 1217.85(W)×247.68(H) mm |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 1.07B 100% sRGB |
| Frequency | 60Hz |
| Weight | TBD |
| Panel Model | DV490FBM-N00 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 16 (Typ.)(Tr+Td) |
| Lamp Type | WLED , Without Driver |
| Touch Screen | Without |
