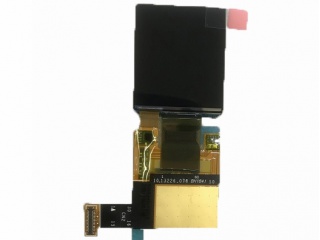

| PartNumber | E1414AK68.A |
| Brand | EDO |
| Size | 1.4 |
| Application | Wearable |
| Resolution | 320×360 |
| Composition | OLED, AM-OLED |
| Brightness | |
| CR | 10000:1 |
| Colors | 16.7M |
| Backlight | self |
| Interface | MIPI |
| Manufacturer | EDO |
| Model Name | E1414AK68.A |
| Screen Size | 1.4 inch |
| Screen Type | OLED, AM-OLED |
| Pixel Number | 320(RGB)×360 340PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 23.84 × 26.82 (H×V) |
| Outline(mm) | 26.04 × 31.78 × 0.85 (H×V×D) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 10000 : 1 (Min.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1000) |
| Response | 2 (Typ.)(Tr+Tf) ms |
| Good View at | Symmetry |
| Work Mode | - |
| Color Depth | 16.7M 105% NTSC |
| Mass | - |
| Used for | Wearable |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP |
| Driver IC list | Built-in COF RM67162 |
| Signal Type | MIPI (1 data lane) , Connector 30 pins |
| Voltage Supply | 1.8/2.8/4.6/2.4V (Typ.)(VDDIO/VCI/ELVDD/ELVSS) |
| Max. Ratings | Storage Temp.: -40 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
