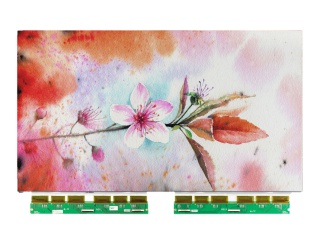

| PartNumber | EC312TT2 |
| Brand | E Ink |
| Size | 31.2 |
| Application | Digital Signage |
| Resolution | 1280×720 |
| Composition | EPD, EPD |
| Brightness | |
| CR | 13:1 |
| Colors | 4096 |
| Backlight | No B/L |
| Interface | Parallel |
| Manufacturer | E Ink |
| Model Name | EC312TT2 1 Compatible |
| Screen Size | 31.2 inch |
| Screen Type | EPD, EPD |
| Pixel Number | 1280×720 (WXGA) 47PPI |
| Arrangement | Rectangle |
| Active Area(mm) | 691.2 × 388.8 (H×V) |
| Outline(mm) | 697.2 × 402.8 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Hard coating |
| Luminance | - |
| Contrast Ratio | 13:1 (Typ.) (RF) |
| Viewing Angle | - |
| Response | - |
| Good View at | - |
| Work Mode | Reflective |
| Color Depth | 4096 13% NTSC |
| Mass | 800g (Typ.) |
| Used for | Digital Signage |
| Refresh Rate | 50Hz |
| Touchscreen | Without |
| Signal Type | Parallel Data (2ch, 8-bit) , Connector 200 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 50 °C |
