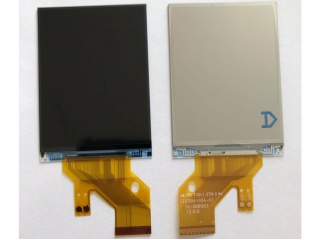

| PartNumber | EE030IA-03A |
| Brand | Chimei Innolux |
| Size | 3.0 |
| Application | Digital Still Camera |
| Resolution | 640×480 |
| Composition | CELL , a-Si TFT-LC |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | No B/L , No Driver |
| Interface | YUV |
| Manufacturer | Chimei Innolux |
| Screen Size | 3.0 inch |
| Pixel Number | 640×480(RGB) (VGA) 270PPI |
| Active Area(mm) | 60 × 45 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 0 cd/m² |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.25+0.25 mm |
| Color Depth | 16.7M 60% NTSC |
| Mass | 5.89g (Typ.) |
| Refresh Rate | 60Hz |
| Signal Type | YUV (16-bit) , 51 pins FPC |
| Voltage Supply | 1.8/3.1V (VDDIO/VDD) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| Model Name | EE030IA-03A |
| Screen Type | CELL , a-Si TFT-LCD |
| Arrangement | RGB Horizontal Stripe |
| Outline(mm) | 69 × 49 × 0.8 (H×V×D) |
| Treatment | Hard coating |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Response | 35 (Typ.)(Tr+Td) ms |
| Work Mode | IPS, Normally Black, Transmissive |
| Transmissivity | 4.5% (Typ.)(with Polarizer) |
| Used for | Digital Still Camera Digital Video Camera |
| Touchscreen | Without |
