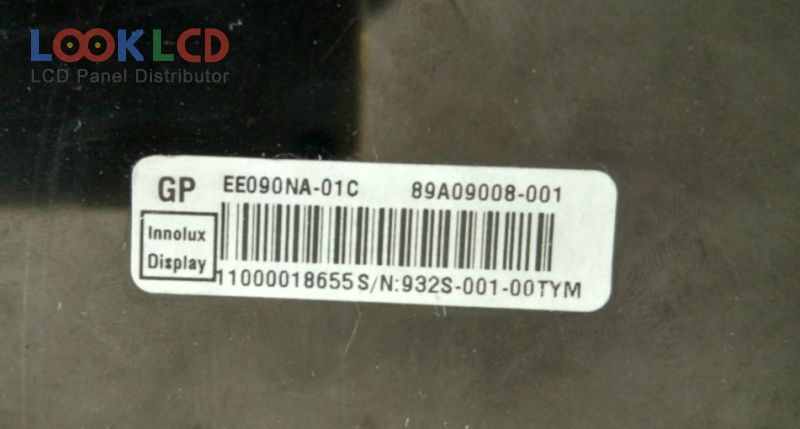

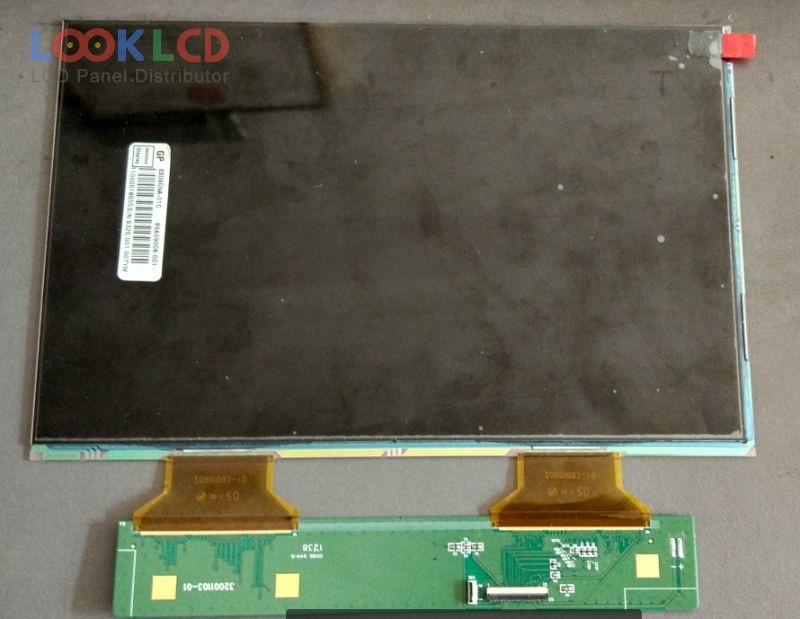

| PartNumber | EE090NA-01C |
| Brand | Innolux |
| Size | 9.0 |
| Application | PAD |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | CELL |
| Brightness | 0 |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | No B/L |
| Interface | TTL |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | EE090NA-01C |
| Panel Type | a-Si TFT-LCD , CELL |
| Panel Size | 9.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 193.92×121.2 mm |
| Outline | 201.46×130.66 mm |
| Surface | |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 3.39% (Typ.)(with APCF) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193170% |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 102 pins |
| Input Voltage | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
