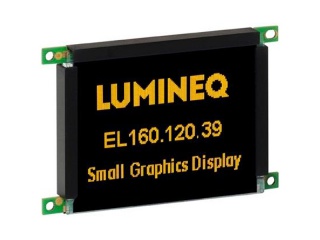

| PartNumber | EL160.120.39-M |
| Brand | Lumineq |
| Size | 3.1 |
| Application | Industrial |
| Resolution | 160×120 |
| Composition | EL, EL |
| Brightness | |
| CR | 60:1 |
| Colors | Mono(Yellow) |
| Backlight | self |
| Interface | |
| Model | EL160.120.39-M |
| Diagonal Size | 3.1 inch |
| Type | EL, EL |
| Pixel Format | 160×120 [QQVGA] 65PPI |
| Configuration | Rectangle |
| Active Area | 62.3(H)×46.7(V) mm |
| Outline Dim. | 93.6(H)×61.5(V) mm |
| Luminance | 70 cd/m² (Typ.) |
| Contrast Ratio | 60:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 1 (Max.) |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Operating Mode | - |
| Support Color | Mono(Yellow) |
| Light Source | self , 50K hours |
| Weight | 65.0g |
| Designed For | Industrial |
| Frame Rate | 150Hz |
| Touch Panel | Without |
| Operating Temperature: -50 ~ 70 °C ; Storage Temperature: -60 ~ 105 °C |
