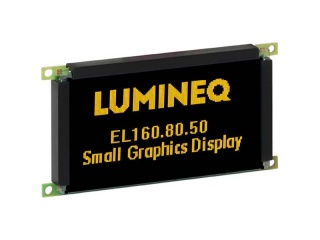

| PartNumber | EL160.80.50-ET SPI |
| Brand | Lumineq |
| Size | 3.5 |
| Application | Industrial |
| Resolution | 160×80 |
| Composition | EL , EL |
| Brightness | |
| CR | 50:1 |
| Colors | Mono(Yellow) |
| Backlight | self , 100K hours |
| Interface | |
| Manufacturer | Lumineq |
| Screen Size | 3.5 inch |
| Pixel Number | 160×80 50PPI |
| Active Area(mm) | 79.9 × 39.9 (H×V) |
| Luminance | 105 (Typ.)(cd/m²) |
| Viewing Angle | 80/80/80/80 (Min.) |
| Good View at | Symmetry |
| Color Depth | Mono(Yellow) |
| Mass | 68.0g (Typ.) |
| Refresh Rate | 240Hz |
| Model Name | EL160.80.50-ET SPI |
| Screen Type | EL , EL |
| Arrangement | Rectangle |
| Outline(mm) | 108.9 × 57.2 × 19 (H×V×D) |
| Contrast Ratio | 50 : 1 (Typ.) (TM) |
| Work Mode | - |
| Response | 1 (Max.) ms |
| Used for | Industrial |
| Touchscreen | Without |
| EL160.80.50 | Lumineq | 3.5 | 160×80 |
| EL160.80.50 ALU | PLANAR | 3.5 | 160×80 |
| EL160.80.50 ET | Lumineq | 3.5 | 160×80 |
| EL160.80.50 ET CC | Lumineq | 3.5 | 160×80 |
| EL160.80.50 IN | Lumineq | 3.5 | 160×80 |
| EL160.80.50 IN LC CC | Lumineq | 3.5 | 160×80 |
| EL160.80.50 LC CC | Lumineq | 3.5 | 160×80 |
| H347QVN02.0 | AUO | 3.5 | 320×480 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
