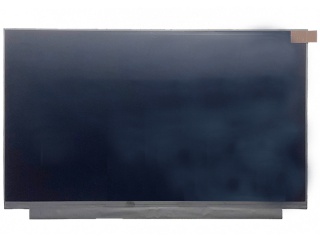

| PartNumber | EV133FHM-N40 |
| Brand | BOE |
| Size | 13.3 |
| Application | Laptop Medical Imaging |
| Resolution | 1920(RGB)×1080, FHD, 166PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 9S4P |
| Interface | eDP |
| Panel Brand | BOE |
| Panel Model | EV133FHM-N40 (BOE09E7) |
| Panel Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Outline Size | 300.26(W)×187.75(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 9S4P WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B133EW03 V0 | AUO | 13.3 | 1280×800 |
| G133I1-L01 | Innolux | 13.3 | 1280×800 |
| LP133WD1-SLA1 | LG Display | 13.3 | 1600×900 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LP133WX1-TLN2 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLG1 | LG Display | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LTN133AT23-B01 | Samsung | 13.3 | 1366×768 |
| N133HSE-EA1 | Innolux | 13.3 | 1920×1080 |
| NV133FHM-N43 | BOE | 13.3 | 1920×1080 |
