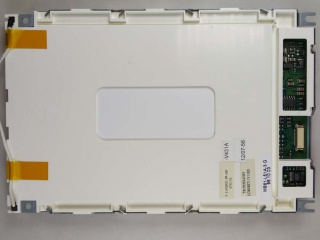

| PartNumber | F-51900NCU-FW-ADN |
| Brand | OPTREX |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | CSTN-LCD, LCM |
| Brightness | |
| CR | 25:1 |
| Colors | Color |
| Backlight | CCFL |
| Interface | Parallel |
| Model | F-51900NCU-FW-ADN |
| Diagonal Size | 5.7 inch |
| Type | CSTN-LCD, LCM |
| Pixel Format | 320(RGB)×240 [QVGA] 70PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 115.2(H)×86.4(V) mm |
| Outline Dim. | 168(H)×111(V) ×7.4(D) mm |
| Luminance | 120 cd/m² (Typ.) |
| Contrast Ratio | 25:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 300/100 (Typ.)(Tr/Td) |
| Viewing Angle | - |
| Operating Mode | STN, Normally Black, Transmissive |
| Support Color | Color |
| Light Source | CCFL , 20K hours , W/O Driver |
| Weight | 234g (Max.) |
| Designed For | Industrial |
| Frame Rate | 70Hz |
| Touch Panel | Without |
| Interface Type | Parallel Data (1ch, 8-bit) |
| Power Supply | 3.0/5.0V (Typ.)(VCC) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
