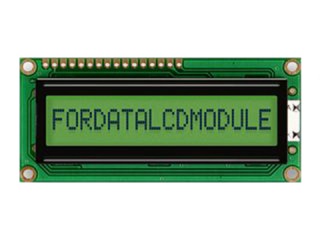

| PartNumber | FC1601E04-RNNYBW-16LE |
| Brand | Fordata |
| Size | 2.4 |
| Application | Instruments & Meters |
| Resolution | 5×8 |
| Composition | LCM , STN-LCD |
| Brightness | |
| CR | 10:1 |
| Colors | Monochrome |
| Backlight | No B/L |
| Interface | |
| Manufacturer | Fordata |
| Screen Size | 2.4 inch |
| Char Number | 16 characters × 1 lines 6PPI |
| Char Pitch(mm) | 3.77×6.56 (H×V) |
| Active Area(mm) | 59.62 × 6.56 (H×V) |
| Bezel Area(mm) | 64.5 × 13.8 (H×V) |
| Luminance | - |
| Viewing Angle | - |
| Good View at | 6 o'clock |
| Color Depth | Monochrome |
| Mass | - |
| Refresh Rate | - |
| Model Name | FC1601E04-RNNYBW-16LE |
| Screen Type | LCM , STN-LCD |
| Char Format | 5×8 dots |
| Char Size(mm) | 3.07×6.56 (H×V) |
| Outline(mm) | 80 × 36 × 9.5 (H×V×D) |
| Treatment | - |
| Contrast Ratio | 10 : 1 (Typ.) (TM) |
| Work Mode | STN, Yellow/Green (Positive), Reflective |
| Response | 150/150 (Typ.)(Tr/Td) ms |
| Used for | Instruments & Meters |
| Touchscreen | Without |
