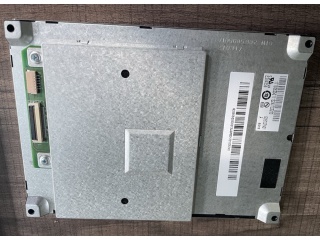

| PartNumber | G057QTN01.4 |
| Brand | AUO |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320(RGB)×240, QVGA, 70PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | CMOS |
| Panel Brand | AUO |
| Panel Size | 5.7" |
| Display Area | 115.2(W)×86.4(H) mm |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Best View on | - |
| Display Colors | 262K |
| Frequency | 60Hz |
| Panel Weight | - |
| Signal Interface | CMOS (1 ch, 6-bit) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| Panel Model | G057QTN01.4 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Lamp Type | WLED , 75K hours |
| Touch Screen | Without |
| AA057VF12 | Mitsubishi | 5.7 | 640×480 |
| CLAA057VC01CW | CPT | 5.7 | 640×480 |
| EL320.240.36 ET CC | Lumineq | 5.7 | 320×240 |
| G057QN01 V0 | AUO | 5.7 | 320×240 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| G057QN01 V2 | AUO | 5.7 | 320×240 |
| G057QTN01.1 | AUO | 5.7 | 320×240 |
| KCG057QV1DB-G56 | Kyocera | 5.7 | 320×240 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
