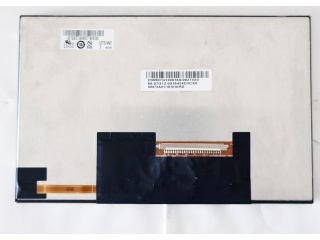

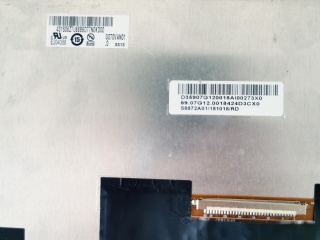

| PartNumber | G070VAN01.0 |
| Brand | AUO |
| Size | 7.0 |
| Application | Industrial |
| Resolution | 800×480 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1300:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | G070VAN01.0 |
| Diagonal Size | 7.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800×480(RGB) [WVGA] 133PPI |
| Configuration | RGB Horizontal Stripe |
| Active Area | 152.4(H)×91.44(V) mm |
| Outline Dim. | 166.6(H)×107(V) ×10(D) mm |
| Bezel Area | 154.2(H)×93.24(V) mm |
| Treatment | Antiglare |
| Luminance | 480 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 11/19 (Max.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K/16.7M 70% NTSC |
| Light Source | WLED [7S2P] , 50K hours , W/O Driver |
| Weight | 175±10%g |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
