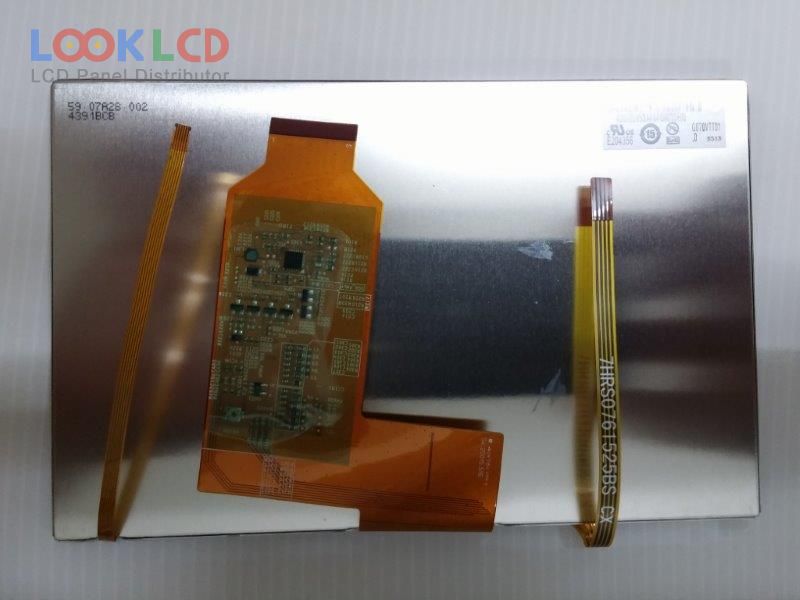

| PartNumber | G070VTT01.0 |
| Brand | AUO |
| Size | 7.0 |
| Application | IA |
| Resolution | 800×480(RGB) , WVGA |
| Composition | LCM |
| Brightness | 360 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | AUO |
| Panel Model | G070VTT01.0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 152.4×91.44 mm |
| Outline | 165×105.8×4.81 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193150% |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S3PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
