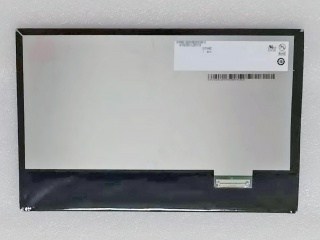

| PartNumber | G101EAN02.1 |
| Brand | AUO |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1280×800 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Diagonal Size | 10.1 inch |
| Pixel Format | 1280(RGB)×800 [WXGA] 149PPI |
| Active Area | 216.96(H)×135.6(V) mm |
| Bezel Area | - |
| Luminance | 400 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M 50% NTSC |
| Weight | 195g (Max.) |
| Frame Rate | 60Hz |
| Interface Type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| Model | G101EAN02.1 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 227.72(H)×147.8(V) ×4.8(D) mm |
| Treatment | Hard coating |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 29 (Typ.)(Tr+Td) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Light Source | WLED , 30K hours , With LED Driver |
| Designed For | Industrial |
| Touch Panel | Without |
