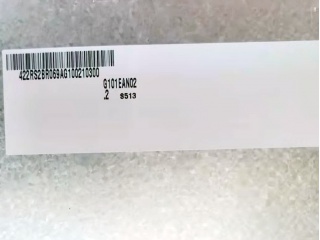

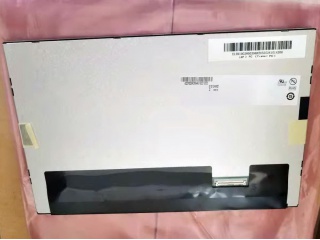

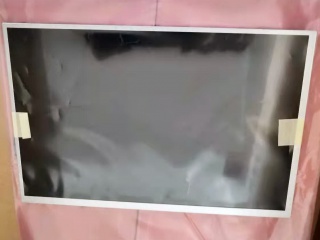

| PartNumber | G101EAN02.2 |
| Brand | AUO |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AUO |
| Panel Model | G101EAN02.2 |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | - |
| Outline Size | 227.91(W)×148(H) ×7.75(D) mm |
| Surface | Hard coating |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 29 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 50% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 290g (Max.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
| B101UAT02.1 | AUO | 10.1 | 1920×1200 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| G101EVN01.0 | AUO | 10.1 | 1280×800 |
| G101EVN01.3 | AUO | 10.1 | 1280×800 |
| HSD100IFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| LP101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| M101NWT2 R2 | IVO | 10.1 | 1024×600 |
