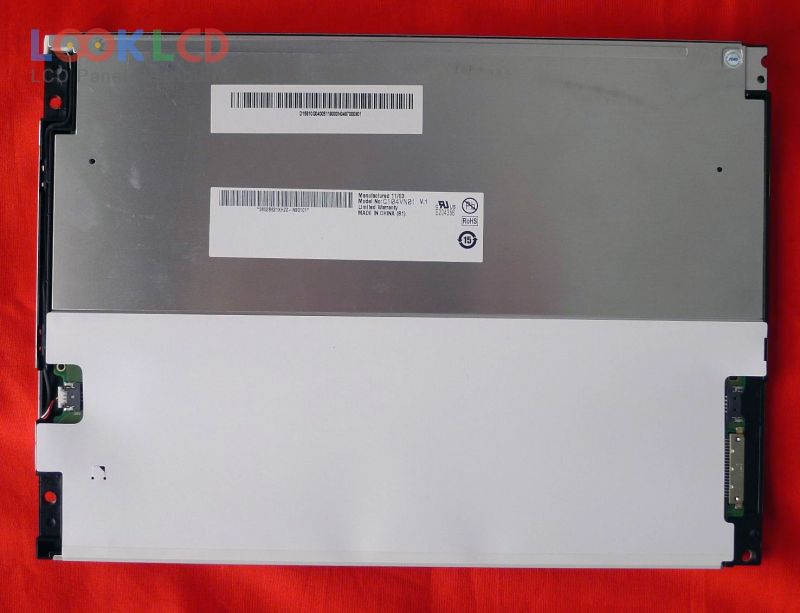

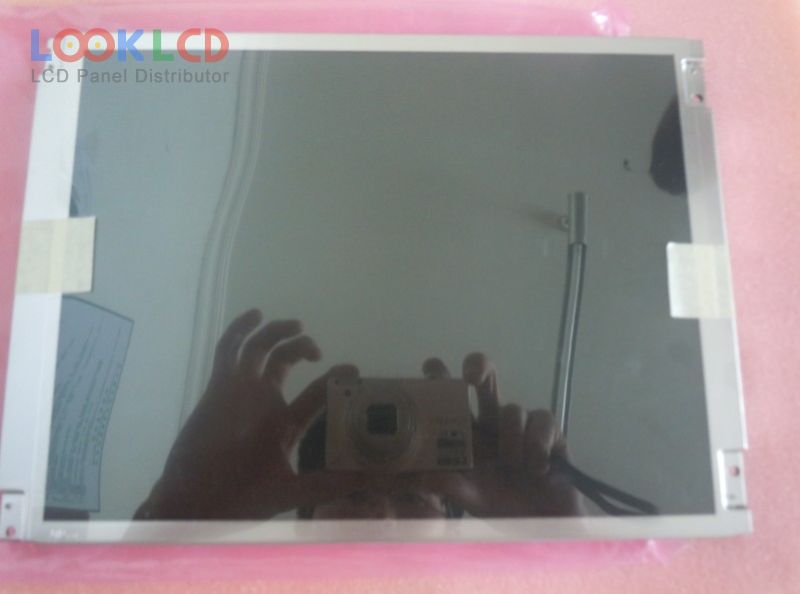

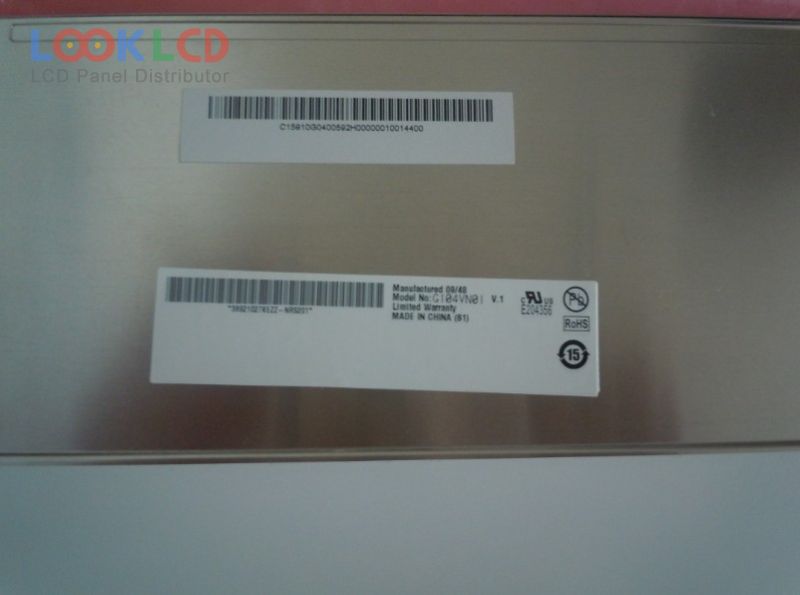

| PartNumber | G104VN01 V1 |
| Brand | AUO |
| Size | 10.4 |
| Application | IA |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 262K/16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AUO |
| Panel Model | G104VN01 V1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 243×176.6×8.5 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 262K/16.2M (6-bit / 6-bit + FRC), CIE193145% |
| Response Time | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S2PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
