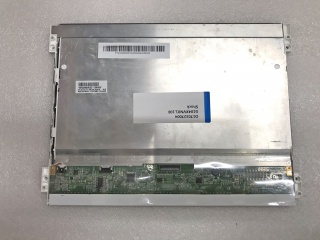

| PartNumber | G104XVN01.1 |
| Brand | AUO |
| Size | 10.4 |
| Application | Industrial |
| Resolution | 1024(RGB)×768, XGA, 123PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | - |
| CR | 3000:1 |
| Colors | 262K/16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AUO |
| Panel Model | G104XVN01.1 |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 210.4(W)×157.8(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm |
| Outline Size | 238.6(W)×175.8(H) ×7(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 20/10 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M |
| Lamp Type | WLED , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
