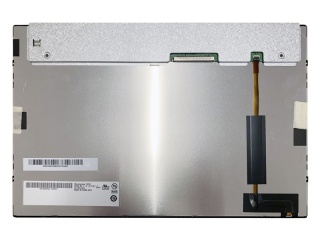

| PartNumber | G121EAN01.4 |
| Brand | AUO |
| Size | 12.1 |
| Application | Industrial Medical I |
| Resolution | 1280×800 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 262K/16.2M |
| Backlight | WLED , 30K hours , With LED Driver |
| Interface | LVDS |
| Manufacturer | AUO |
| Screen Size | 12.1 inch |
| Pixel Number | 1280(RGB)×800 (WXGA) 124PPI |
| Active Area(mm) | 261.12 × 163.2 (H×V) |
| Bezel Area(mm) | 264.22 × 168.12 (H×V) |
| Luminance | 300 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 262K/16.2M 99% sRGB |
| Mass | 480g (Max.) |
| Refresh Rate | 60Hz |
| Signal Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| Model Name | G121EAN01.4 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 278 × 184 × 9.64 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Work Mode | AHVA, Normally Black, Transmissive |
| Used for | Industrial Medical Imaging |
| Touchscreen | Without |
