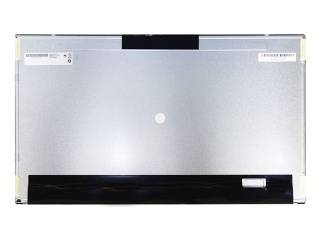

| PartNumber | G238HAN01.1 |
| Brand | AUO |
| Size | 23.8 |
| Application | Industrial Medical I |
| Resolution | 1920×1080 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 18S4P WLED , 50K hours , No Driver |
| Interface | LVDS |
| Manufacturer | AUO |
| Screen Size | 23.8 inch |
| Pixel Number | 1920(RGB)×1080 (FHD) 92PPI |
| Active Area(mm) | 527.04 × 296.46 (H×V) |
| Bezel Area(mm) | 530.2 × 299.6 (H×V) |
| Luminance | 400 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 70% NTSC |
| Mass | 2.30Kgs (Typ.) |
| Refresh Rate | 60Hz |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | G238HAN01.1 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 543 × 317.4 × 11.65 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Response | 14 (Typ.)(G to G) ms |
| Work Mode | AHVA, Normally Black, Transmissive |
| Used for | Industrial Medical Imaging |
| Touchscreen | Without |
