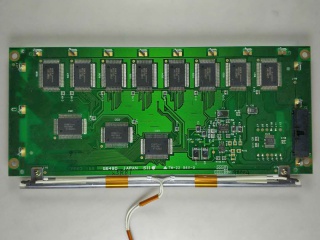

| PartNumber | G649DX5R010 |
| Brand | SII |
| Size | 8.9 |
| Application | Industrial |
| Resolution | 640×200 |
| Composition | FSTN-LCD, LCM |
| Brightness | |
| CR | 8:1 |
| Colors | Monochrome |
| Backlight | CCFL |
| Interface | Parallel |
| Model | G649DX5R010 |
| Diagonal Size | 8.9 inch |
| Type | FSTN-LCD, LCM |
| Pixel Format | 640×200 75PPI |
| Configuration | Rectangle |
| Active Area | 211.17(H)×79.17(V) mm |
| Outline Dim. | 260(H)×110.7(V) ×15(D) mm |
| Bezel Area | 216.0(H)×83.2(V) mm |
| Treatment | - |
| Luminance | 100 cd/m² (Typ.) |
| Contrast Ratio | 8:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 250/150 (Typ.)(Tr/Td) |
| Viewing Angle | - |
| Operating Mode | STN, Black/White (Negative), Transmissive |
| Support Color | Monochrome |
| Light Source | CCFL [1 pcs] , 12K hours , W/O Driver |
| Weight | 420g (Typ.) |
| Designed For | Industrial |
| Frame Rate | 70Hz |
| Touch Panel | Without |
| Interface Type | Parallel Data (1ch, 4-bit) PIN |
| Power Supply | 5.0/-24.0V (Typ.)(VDD/VLC) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
