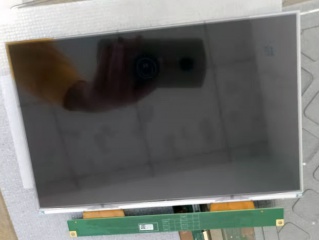

| PartNumber | GV101WXB-NN0-3GP0 |
| Brand | BOE |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | 0 cd/m² |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | No |
| Interface | LVDS |
| Panel Brand | BOE |
| Panel Model | GV101WXB-NN0-3GP0 |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | - |
| Outline Size | 221.96(W)×144.43(H) ×1.06(D) mm |
| Surface | Without Polarizer, Hard coating |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 50% NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |

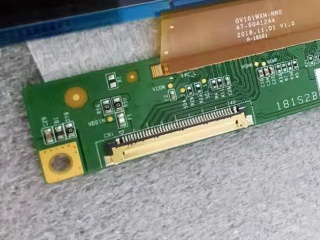

| Driver IC | COG Built-in 2 source chips |
| Panel Weight | - |
| Signal Interface | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
