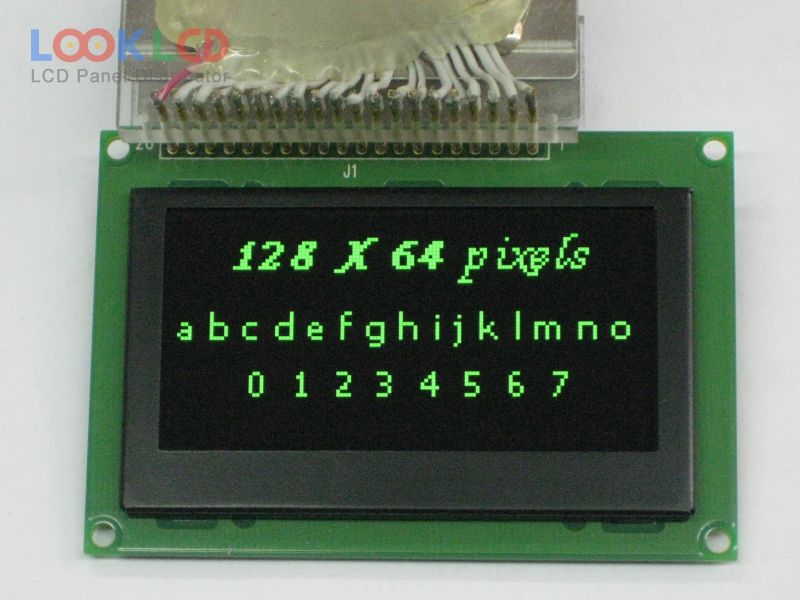

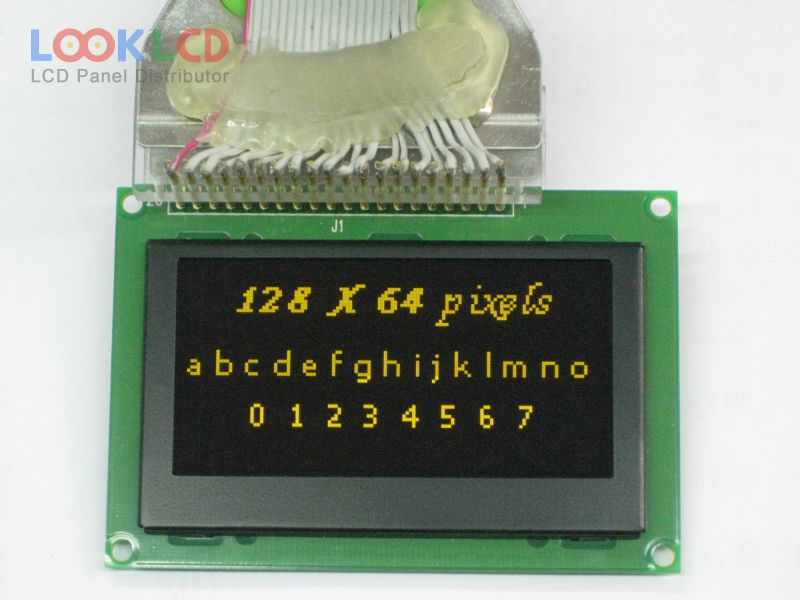

| PartNumber | HGS128641-Y-EH-LV |
| Brand | Other |
| Size | 2.7 |
| Application | IA |
| Resolution | 128×64 |
| Composition | OLED |
| Brightness | |
| CR | |
| Colors | Mono(Yellow) |
| Backlight | self |
| Interface | CPU/SPI/I²C |
| Panel Brand | TSINGTEK |
| Panel Model | HGS128641-Y-EH-LV |
| Panel Type | PM-OLED , OLED |
| Panel Size | 2.7 inch |
| Active Area | 61.41×30.69 mm |
| Outline | 85×58×8 mm |
| Surface | |
| Contrast Ratio | |
| Display Colors | Mono(Yellow) |
| Viewing Angle | 80/80/80/80 (Min.)(L/R/U/D) |
| Signal Interface | 8-bit 6800/8080 parallel, SPI, I²C, 20 pins |
| Input Voltage | 3.3V (Typ.) |
