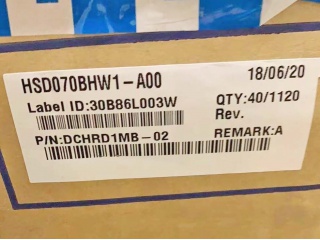

| PartNumber | HSD070BHW1-A00 |
| Brand | HannStar |
| Size | 7.0 |
| Application | Pad & Tablet |
| Resolution | 720×1280 |
| Composition | CELL , a-Si TFT-LC |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | No B/L |
| Interface | |
| Manufacturer | HannStar |
| Screen Size | 7.0 inch |
| Pixel Number | 720(RGB)×1280 (WXGA) 210PPI |
| Active Area(mm) | 86.94 × 154.56 (H×V) |
| Luminance | 0 cd/m² |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.40+0.40 mm |
| Color Depth | 16.7M 70% NTSC |
| Mass | - |
| Refresh Rate | - |
| Driver IC list | Built-in COG HX8394-A01, HX8394-B, NT35520, NT35521, OTM1283A, OTM1288A |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Model Name | HSD070BHW1-A00 |
| Screen Type | CELL , a-Si TFT-LCD |
| Arrangement | RGB Ttilt Stripe |
| Outline(mm) | 89.94 × 162.56 × 0.8 (H×V×D) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Response | 10/20 (Typ.)(Tr/Td) ms |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Transmissivity | 4.0% (Typ.)(with Polarizer) |
| Used for | Pad & Tablet |
| Touchscreen | Without |
