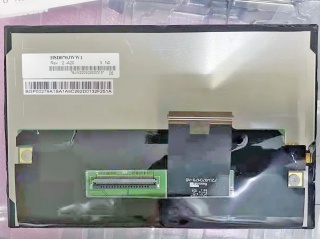

| PartNumber | HSD070JWW1-A20 |
| Brand | HannStar |
| Size | 7.0 |
| Application | Automotive Display |
| Resolution | 1280(RGB)×768, WXGA, 213PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | - |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | HannStar |
| Panel Size | 7.0" |
| Display Area | 152.448(W)×91.4688(H) mm |
| Viewing Angle | - |
| Best View on | Symmetry |
| Display Colors | 16.7M |
| Frequency | 60Hz |
| Panel Weight | - |
| Signal Interface | LVDS (1 ch, 8-bit) + SPI , 60 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| Panel Model | HSD070JWW1-A20 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 1000:1 (Min.) (TM) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Response Time | 25 (Max.)(Tr+Td) |
| Lamp Type | WLED |
| Touch Screen | - |
