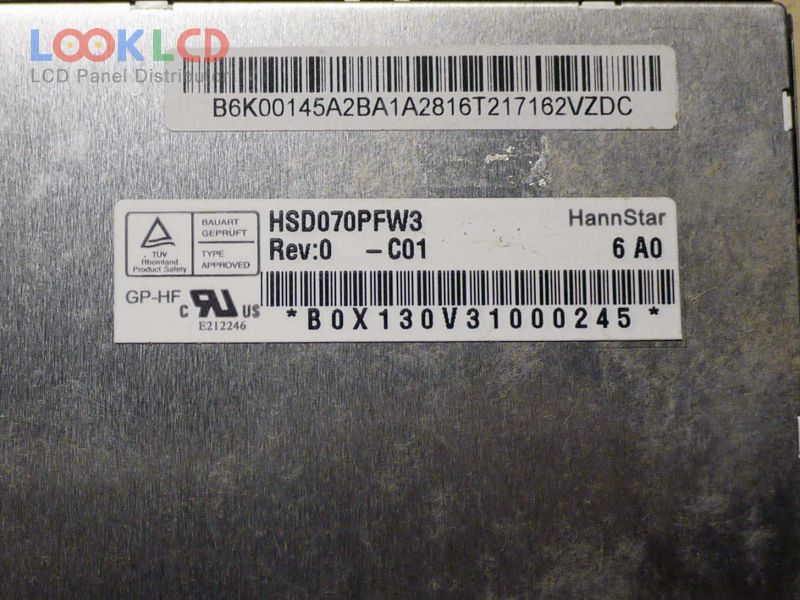

| PartNumber | HSD070PFW3-C01 |
| Brand | HannStar |
| Size | 7.0 |
| Application | CNS |
| Resolution | 1024(RGB)×600 , WSVGA |
| Composition | LCM |
| Brightness | 600 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | HannStar |
| Panel Model | HSD070PFW3-C01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 153.6×90 mm |
| Outline | 164.4×102.2×6 mm |
| Surface | Hard coating |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193150% |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3S8PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Voltage | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL) |
