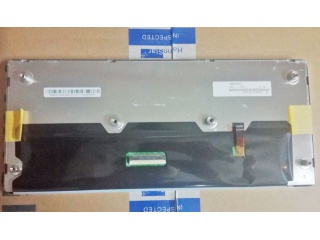

| PartNumber | HSD103JPW2-A00 |
| Brand | HannStar |
| Size | 10.3 |
| Application | Outdoor High Brightn |
| Resolution | 1920×720 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Model | HSD103JPW2-A00 |
| Diagonal Size | 10.3 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×720 200PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 243.648(H)×91.368(V) mm |
| Outline Dim. | 259.8(H)×112(V) ×15.7(D) mm |
| Bezel Area | 246.05(H)×93.77(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 70% NTSC |
| Light Source | WLED [9S4P] , 20K hours , W/O Driver |
| Weight | TBD |
| Designed For | Outdoor High Brightness Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
