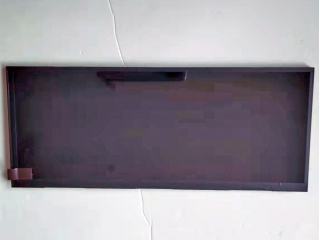

| PartNumber | HSD103JPW2-H10 |
| Brand | HannStar |
| Size | 10.3 |
| Application | Outdoor High Brightn |
| Resolution | 1920×720 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1500:1 |
| Colors | 16.7M |
| Backlight | 4 strings WLED , 20K hours , No Driver |
| Interface | LVDS |
| Manufacturer | HannStar |
| Screen Size | 10.3 inch |
| Pixel Number | 1920(RGB)×720 200PPI |
| Active Area(mm) | 243.648 × 91.368 (H×V) |
| Bezel Area(mm) | 246.7 × 94.4 (H×V) |
| Luminance | 1000 cd/m² (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 70% NTSC |
| Mass | TBD |
| Refresh Rate | 60Hz |
| Signal Type | LVDS (2 ch, 8-bit) , 60 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Model Name | HSD103JPW2-H10 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 258.8 × 110 × 17 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Response | 30 (Max.)(Tr+Td) ms |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Used for | Outdoor High Brightness Automotive Display |
| Touchscreen | Without |
