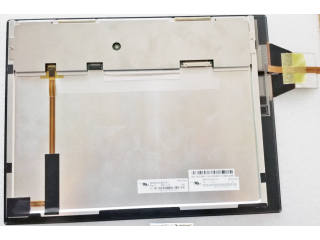

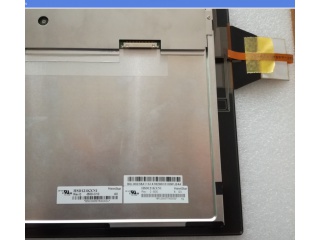

| PartNumber | HSD121KXN1-B00-C10 |
| Brand | HannStar |
| Size | 12.1 |
| Application | Automotive Display |
| Resolution | 1024(RGB)×768, XGA, 105PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 600 cd/m² (Typ.) |
| CR | 900:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Panel Brand | HannStar |
| Panel Size | 12.1" |
| Display Area | 245.76(W)×184.32(H) mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 72% NTSC |
| Frequency | 60Hz |
| Weight | - |
| Panel Model | HSD121KXN1-B00-C10 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Touch Screen | Embeded Touch |
