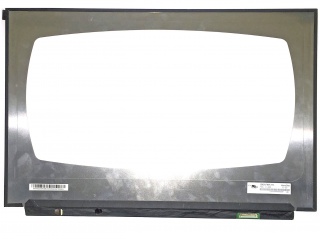

| PartNumber | HSD170PUW1-B00 |
| Brand | HannStar |
| Size | 17.0 |
| Application | Laptop |
| Resolution | 1920×1200 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Model | HSD170PUW1-B00 |
| Diagonal Size | 17.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1200 [WUXGA] 133PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 365.184(H)×228.24(V) mm |
| Outline Dim. | 373.248(H)×241.38(V) ×6(D) mm |
| Bezel Area | - |
| Treatment | Antiglare |
| Luminance | 270 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 95% DCI-P3 |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
