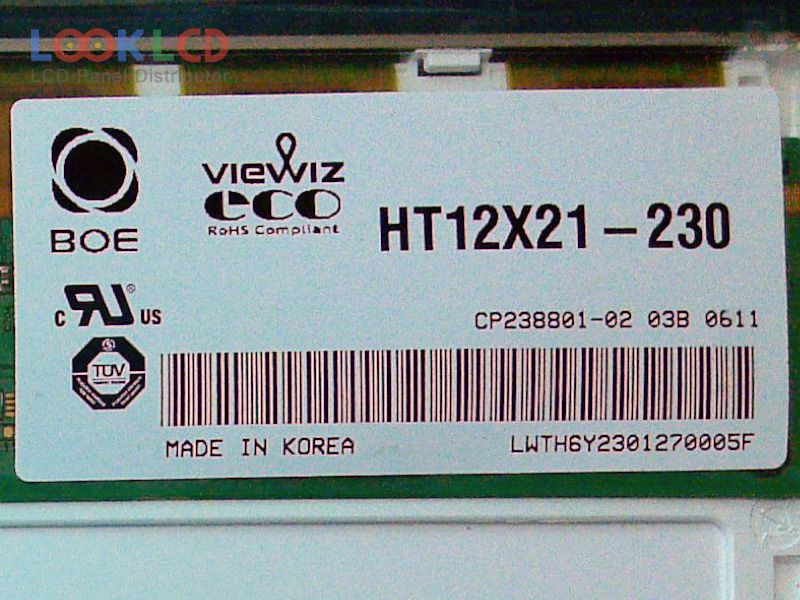

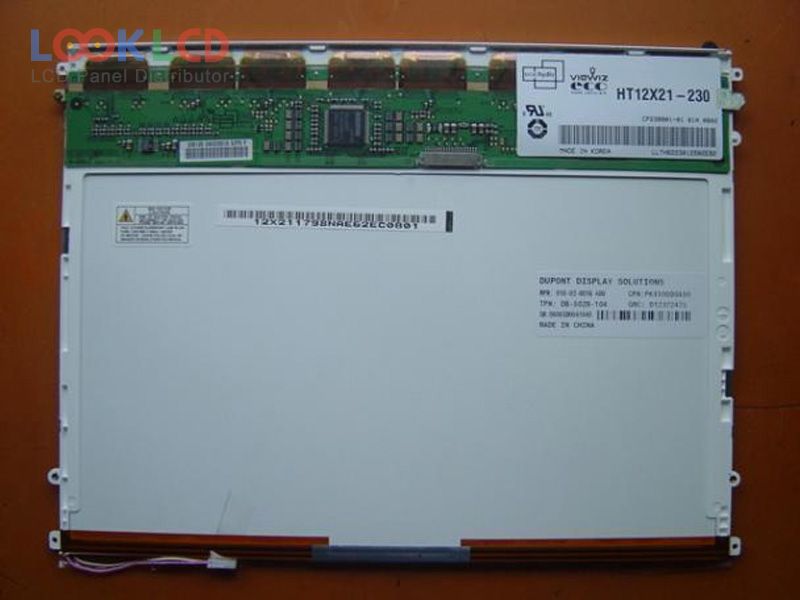

| PartNumber | HT12X21-230 |
| Brand | HYDIS |
| Size | 12.1 |
| Application | PAD |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 180 cd/m² (Typ.) |
| CR | 450:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | BOE HYDIS |
| Panel Model | HT12X21-230 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | AFFS, Normally Black, Transmissive |
| Active Area | 245.76×184.32 mm |
| Outline | 270×199×7 mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 450:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193140% |
| Response Time | 40 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
