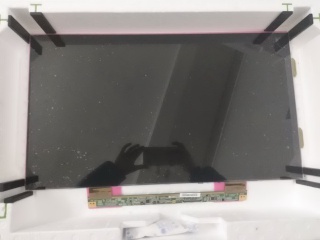

| PartNumber | HV236WHB-N40 |
| Brand | BOE |
| Size | 23.6 |
| Application | TV Sets |
| Resolution | 1366×768 |
| Composition | CELL , a-Si TFT-LC |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | No B/L |
| Interface | LVDS |
| Manufacturer | BOE |
| Screen Size | 23.6 inch |
| Pixel Number | 1366(RGB)×768 (WXGA) 66PPI |
| Active Area(mm) | 521.471 × 293.184 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.50+0.50 mm |
| Color Depth | 16.7M 98% sRGB |
| Mass | 471g (Typ.) |
| Refresh Rate | 60Hz |
| Driver IC list | Built-in COF 2 source chips |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | HV236WHB-N40 |
| Screen Type | CELL , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 535.47 × 306.404 × 1.4 (H×V×D) |
| Treatment | Antiglare (Haze 1%) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Response | 14 (Typ.)(G to G) ms |
| Work Mode | ADS, Normally Black, Transmissive |
| Transmissivity | 5.3% (Typ.)(with Polarizer) |
| Used for | TV Sets |
| Touchscreen | Without |
