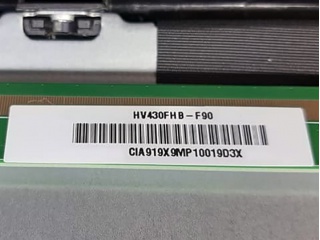

| PartNumber | HV430FHB-F90 |
| Brand | BOE |
| Size | 43 |
| Application | TV Sets |
| Resolution | 1920(RGB)×1080, FHD, 51PPI |
| Composition | a-Si TFT-LCD , CELL |
| Brightness | 0 cd/m² |
| CR | 1200:1 |
| Colors | 1.07B |
| Backlight | No |
| Interface | |
| Panel Brand | BOE |
| Panel Size | 43" |
| Display Area | 940.896(W)×529.254(H) mm |
| Outline Size | 950.896(W)×541.75(H) ×1.4(D) mm |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.50+0.50 mm |
| Display Colors | 1.07B 72% NTSC |
| Frequency | 60Hz |
| Weight | 1.51Kgs (Typ.) |
| Panel Model | HV430FHB-F90 |
| Panel Type | a-Si TFT-LCD , CELL |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 8 (Typ.)(G to G) |
| Transmissivity | 6.3% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
