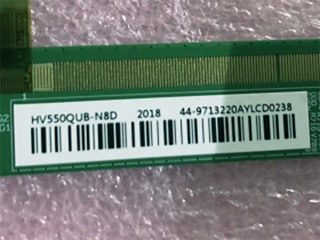

| PartNumber | HV550QUB-N8D |
| Brand | BOE |
| Size | 55 |
| Application | TV Sets |
| Resolution | 3840×2160 |
| Composition | CELL , a-Si TFT-LC |
| Brightness | |
| CR | 1200:1 |
| Colors | 16.7M |
| Backlight | No B/L |
| Interface | V-by-One |
| Manufacturer | BOE |
| Screen Size | 55 inch |
| Pixel Number | 3840(RGB)×2160 (UHD) 80PPI |
| Active Area(mm) | 1209.6 × 680.4 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.50+0.50 mm |
| Color Depth | 16.7M 76% NTSC |
| Mass | 2.70Kgs (Typ.) |
| Refresh Rate | 60Hz |
| Driver IC list | Built-in COF 12 source chips |
| Signal Type | V-by-One 8 lane , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | HV550QUB-N8D |
| Screen Type | CELL , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 1221.4 × 694.8 × 1.34 (H×V×D) |
| Treatment | Antiglare (Haze 1%), Hard coating (2H) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Response | 8 (Typ.)(G to G) ms |
| Work Mode | ADS, Normally Black, Transmissive |
| Transmissivity | 5.3% (Typ.)(with Polarizer) |
| Used for | TV Sets |
| Touchscreen | Without |
