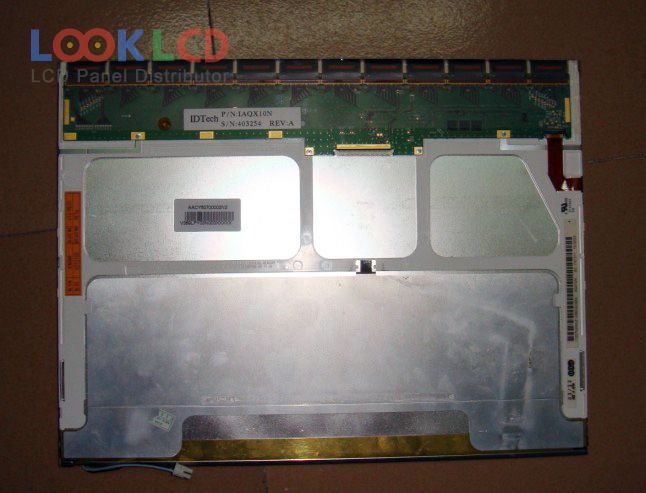

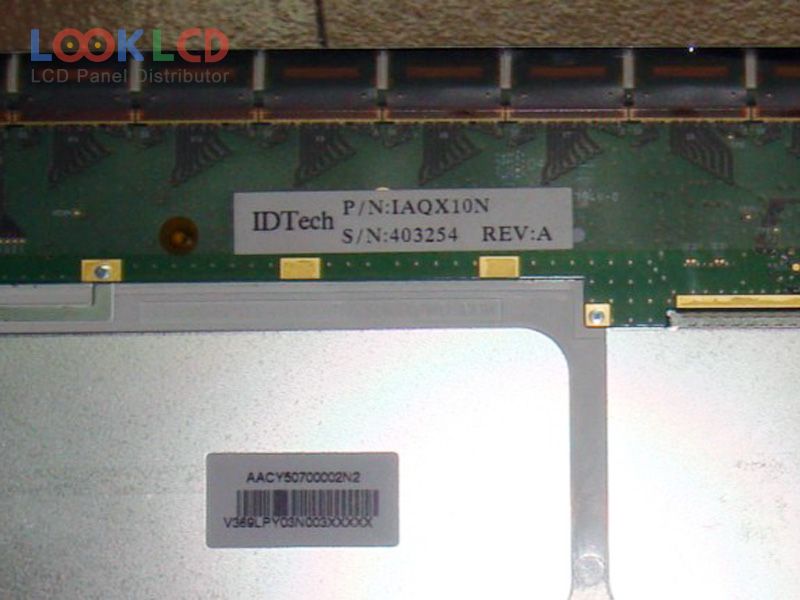

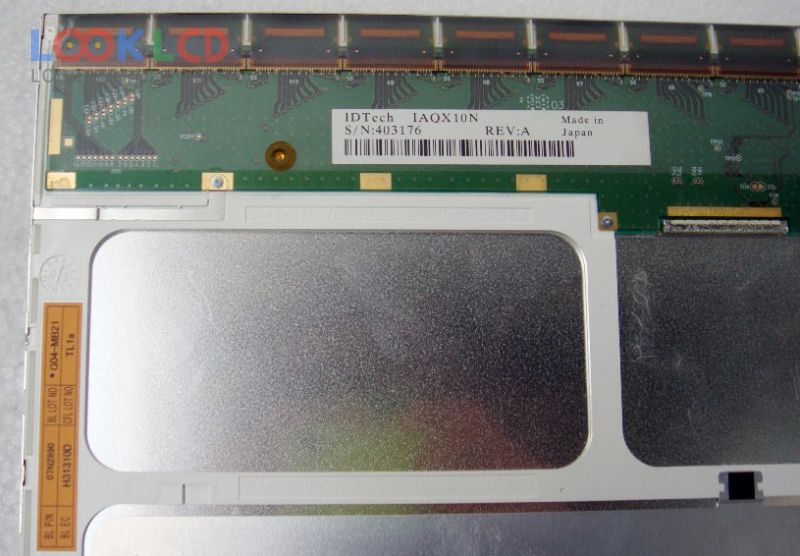

| PartNumber | IAQX10N |
| Brand | IDTech |
| Size | 15.0 |
| Application | NBPC |
| Resolution | 2048(RGB)×1536 , QXGA |
| Composition | LCM |
| Brightness | 150 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | IDTech |
| Panel Model | IAQX10N |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 304.1×228.1 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFL |
| Signal Interface | LVDS (2 ch, 6-bit) |
| Input Voltage | 3.3V (Typ.) |
| CLAA150XM05 | CPT | 15.0 | 1024×768 |
| G150XG01 V0 | AUO | 15.0 | 1024×768 |
| G150XTN06.4 | AUO | 15.0 | 1024×768 |
| IAQX10M | IDTech | 15.0 | 2048×1536 |
| IAQX10N | IDTech | 15.0 | 2048×1536 |
| LQ150X1LG92 | SHARP | 15.0 | 1024×768 |
| LQ150X1LW12 | SHARP | 15.0 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| NL10276BC30-34D | NLT | 15.0 | 1024×768 |
| TX38D03VM1AAA | KOE | 15.0 | 1024×768 |
| B121EW03 V8 | AUO | 12.1 | 1280×800 |
| B140XW01 V4 | AUO | 14.0 | 1366×768 |
| B141EW05 V0 | AUO | 14.1 | 1280×800 |
| B150XG01 V7 | AUO | 15.0 | 1024×768 |
| LP133WH2-TLB2 | LG Display | 13.3 | 1366×768 |
| LP141X13-B1 | LG Display | 14.1 | 1024×768 |
| LP156WH3-TLC1 | LG Display | 15.6 | 1366×768 |
| LQ156D1JW02 | SHARP | 15.6 | 3840×2160 |
| LTN141X8-L00 | Samsung | 14.1 | 1024×768 |
| LTN141XF-L03 | Samsung | 14.1 | 1024×768 |
