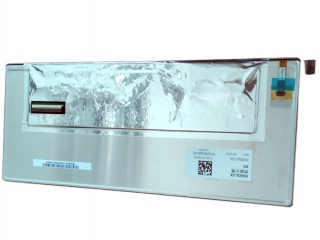

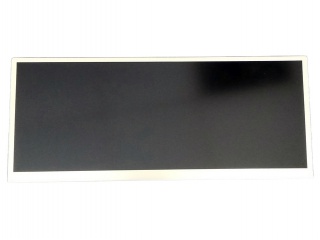

| PartNumber | JJ103IA-12A |
| Brand | Innolux |
| Size | 10.3 |
| Application | Outdoor High Brightness Automotive Display |
| Resolution | 1920(RGB)×720, 200PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 800 cd/m² (Typ.) |
| CR | 1300:1 |
| Colors | 16.7M |
| Backlight | 4 |
| Interface | LVDS |
| Panel Brand | Innolux |
| Panel Size | 10.3" |
| Display Area | 243.648(W)×91.368(H) mm |
| Outline Size | 255.24(W)×106.68(H) mm |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 71% NTSC |
| Frequency | 60Hz |
| Panel Weight | 380g (Max.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| Panel Model | JJ103IA-12A |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 246.65(W)×94.37(H) mm |
| Surface | Antiglare |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 27 (Typ.)(Tr+Td) |
| Lamp Type | 4 strings WLED , 10K hours , Without Driver |
| Touch Screen | Without |
| DJ103FA-01A | Innolux | 10.3 | 1920×720 |
