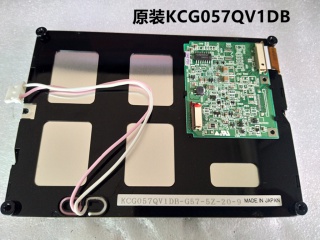

| PartNumber | KCG057QV1DB-G57 |
| Brand | Kyocera |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320(RGB)×240, QVGA, 70PPI |
| Composition | CSTN-LCD, LCM |
| Brightness | - |
| CR | 60:1 |
| Colors | Color |
| Backlight | 1 |
| Interface | |
| Panel Brand | Kyocera |
| Panel Model | KCG057QV1DB-G57 |
| Panel Size | 5.7" |
| Panel Type | CSTN-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | - |
| Contrast Ratio | 60:1 (Typ.) (TM) |
| Viewing Angle | 50/50/20/35 (Typ.)(CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Best View on | - |
| Response Time | 180/170 (Typ.)(Tr/Td) |
| Display Colors | Color |
| Lamp Type | 1 pcs CCFL , Optional |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| C555001 | SII | 5.7 | 320×240 |
| EL320.240.36 AGL | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB SE | PLANAR | 5.7 | 320×240 |
| G057AGE-T01 | Innolux | 5.7 | 320×240 |
| KCG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G500 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G56 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G760 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G77 | Kyocera | 5.7 | 320×240 |
