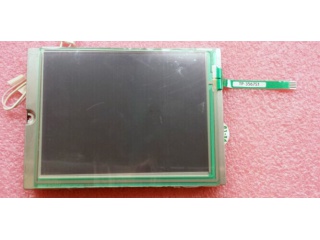

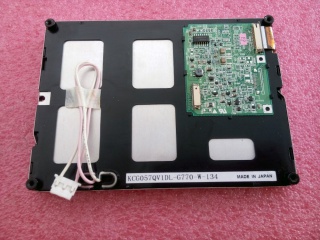

| PartNumber | KCG057QV1DL-G770 |
| Brand | Kyocera |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | CSTN-LCD, LCM |
| Brightness | |
| CR | 55:1 |
| Colors | Color |
| Backlight | CCFL |
| Interface | Parallel |
| Model | KCG057QV1DL-G770 |
| Diagonal Size | 5.7 inch |
| Type | CSTN-LCD, LCM |
| Pixel Format | 320(RGB)×240 [QVGA] 70PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 115.2(H)×86.4(V) mm |
| Outline Dim. | 144(H)×104.8(V) ×15.3(D) mm |
| Bezel Area | 119.4(H)×90.6(V) mm |
| Treatment | Hard coating (2H) |
| Luminance | - |
| Contrast Ratio | 55:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 180/170 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/20/35 (Typ.)(CR≥2) |
| Operating Mode | STN, Normally Black, Transmissive |
| Support Color | Color |
| Light Source | CCFL [1 pcs] |
| Weight | 220g (Typ.) |
| Designed For | Industrial |
| Frame Rate | 75Hz |
| Touch Panel | 4-wire Resistive Touch |
| Interface Type | Parallel Data (1ch, 8-bit) Connector |
| Power Supply | 3.3/5.0V (Typ.)(VDD) |
| Environment | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
