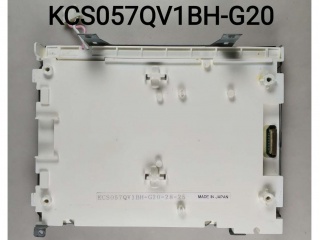

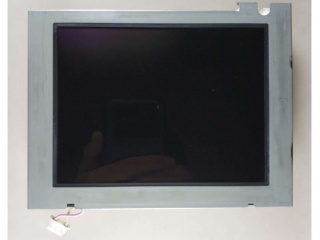

| PartNumber | KCS057QV1BH-G20 |
| Brand | Kyocera |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | LCM, CSTN-LCD |
| Brightness | |
| CR | 40:1 |
| Colors | Color |
| Backlight | 1 pcs CCFL , 40K hours , No Driver |
| Interface | Parallel |
| Manufacturer | Kyocera |
| Model Name | KCS057QV1BH-G20 |
| Screen Size | 5.7 inch |
| Screen Type | LCM, CSTN-LCD |
| Pixel Number | 320(RGB)×240 (QVGA) 70PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 115.2 × 86.4 (H×V) |
| Outline(mm) | - |
| Luminance | - |
| Contrast Ratio | 40 : 1 (Typ.) (TM) |
| Viewing Angle | 50/50/30/30 (Typ.)(CR≥2) |
| Response | 220/110 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | STN, Normally Black, Transmissive |
| Color Depth | Color |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | Parallel Data (1ch, 8-bit) , Connector 15 pins |
